Schneider
Schneider TeSys K - differential thermal overload relays - 8...11.5 A - class 10A - LR2K0316
Out Of Stock
LR2K0316
Notify me when the product is back in stock
Harga Spesial Rp426.016 Harga Reguler Rp687.123
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk

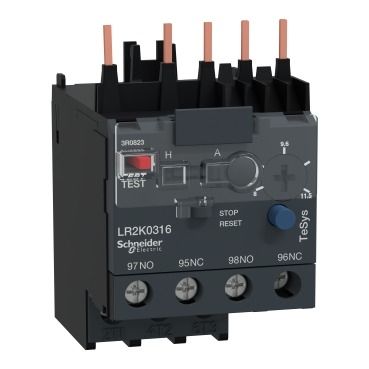

TeSys LRK thermal overload relay, 11.5A/690V, thermal setting range 8-11.5A, tripping class 10A, for protection of 3-phase motors 4kW@400V.
Differential device with phase failure and load unbalance detection.
It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling.
Settings are protected by a transparent cover lockable by sealing.
Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K09-K16.
Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately).
Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Spesifikasi
| Range | TeSys K |
|---|---|
| Product/Component Type | Relay Beban Lebih Termal |
