Schneider

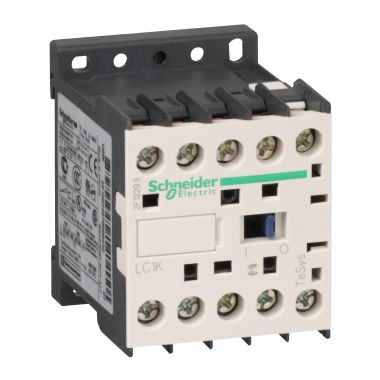

Schneider Kontaktor TeSys K - 3P, 1NO, 9A, 220-230V, AC coil, AC-3 -<= 440 V - LC1K0910M7

Ready Stock
LC1K0910M7
Harga Spesial Rp267.710 Harga Reguler Rp431.790
Tambahkan ke Daftar Keinginan

Copied to Clipboard

main product photo
Deskripsi Produk

Deskripsi Produk

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V), and for non-inductive load control applications up to 20A/690V AC-1.

It provides a 220V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals.

For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications.

Very compact (45mm width), DIN-rail mounting or screw fixing.

Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Spesifikasi

Informasi lebih lanjut
RangeTeSys K
Product/Component TypeKontaktor
Poles description3P
Pole contact composition3 NO
[Uc] control circuit voltage220...230 V AC 50/60 Hz
[Ie] rated operational current9 A at <= 440 V AC AC-3 for power circuit
