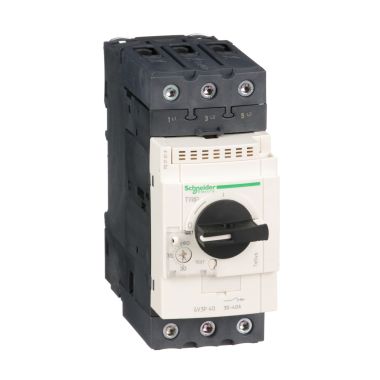

TeSys GV motor circuit breaker, 3 poles (3P), 40A/690V, for 3-phase motor applications 18.5kW@400V.
It provides a thermal-magnetic protection with a thermal setting range 30-40A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V.
Connection by Everlink BTR screw terminals.
Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3.
Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
| Range | TeSys Deca |
|---|---|
| Product/Component Type | Motor Circuit Breaker |
