Schneider

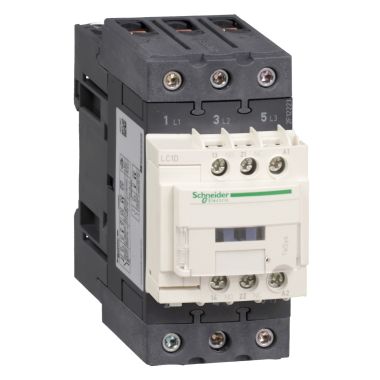

Schneider Kontaktor TeSys D - 3P, 65A, 220V, AC coil, 3NO, AC-3 -<=440V - LC1D65AM7

Ready Stock
LC1D65AM7
Harga Spesial Rp2.174.024 Harga Reguler Rp3.506.490
Tambahkan ke Daftar Keinginan

Copied to Clipboard

main product photo
Deskripsi Produk

Deskripsi Produk

TeSys D contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (30kW@400V).

It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals.

For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability.

Compact (55mm width), DIN-rail mounting or screw fixing.

Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Spesifikasi

Informasi lebih lanjut
RangeTeSys Deca
Product/Component TypeKontaktor
Poles description3P
Pole contact composition3 NO
[Uc] control circuit voltage220 V AC 50/60 Hz
[Ie] rated operational current65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
