Schneider

Schneider Kontaktor TeSys D - 3P, 32A, 220V, AC coil, 3NO, AC-3 -<=440V - LC1D32M7

Ready Stock
LC1D32M7
Harga Spesial Rp711.599 Harga Reguler Rp1.147.740
Tambahkan ke Daftar Keinginan

Copied to Clipboard

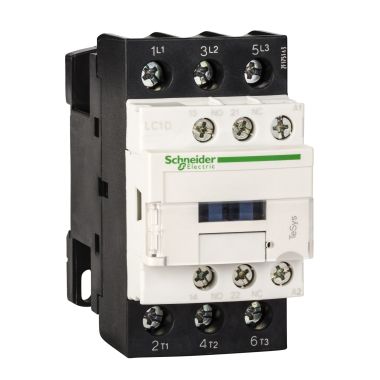

main product photo
Deskripsi Produk

Deskripsi Produk

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15kW@400V).

It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals.

For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability.

Compact (45mm width), DIN-rail mounting or screw fixing.

Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Spesifikasi

Informasi lebih lanjut
RangeTeSys Deca
Product/Component TypeKontaktor
Poles description3P
Pole contact composition3 NO
[Uc] control circuit voltage220 V AC 50/60 Hz
[Ie] rated operational current32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
