Schneider

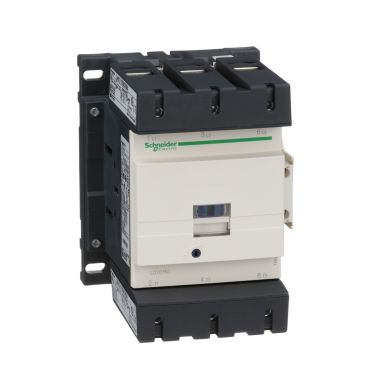

Schneider Kontaktor TeSys D - 3P, 150A, 220V, AC coil, 3NO, AC-3 -<=440V - LC1D150M7

Indent
LC1D150M7
Harga Spesial Rp5.127.090 Harga Reguler Rp8.269.500
Tambahkan ke Daftar Keinginan

Copied to Clipboard

main product photo
Deskripsi Produk

Deskripsi Produk

TeSys D contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V).

It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals.

For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability.

Compact (120mm width), mounting on 2 DIN-rails or screw fixing.

Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Spesifikasi

Informasi lebih lanjut
RangeTeSys Deca
Product/Component TypeKontaktor
Poles description3P
Pole contact composition3 NO
[Uc] control circuit voltage220 V AC 50/60 Hz
[Ie] rated operational current150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
