Schneider

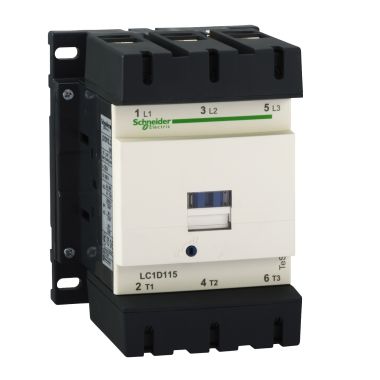

Schneider Kontaktor TeSys D - 3P, 115A, 220V, AC coil, 3NO, AC-3 -<=440V - LC1D115M7
Out Of Stock
LC1D115M7
Notify me when the product is back in stock
Harga Spesial Rp3.342.918 Harga Reguler Rp5.391.803
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
TeSys D contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V).
It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals.
For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability.
Compact (120mm width), mounting on 2 DIN-rails or screw fixing.
Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Spesifikasi
| Range | TeSys Deca |
|---|---|
| Product/Component Type | Kontaktor |
| Poles description | 3P |
| Pole contact composition | 3 NO |
| [Uc] control circuit voltage | 380 V AC 50/60 Hz |
| [Ie] rated operational current | 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
