Schneider

Schneider MCCB NS 800N - 800 A - 4 poles 4t - Micrologic 2.0 - > 630A circuit breaker - 33469

Name: Schneider MCCB NS 800N - 800 A - 4 poles 4t - Micrologic 2.0 - > 630A circuit breaker - 33469
Brand: Schneider
Price: 37074932 IDR
Availability: OutOfStock

Out Of Stock

33469

Notify me when the product is back in stock

Harga Spesial Rp17.425.218 Harga Reguler Rp37.074.932

Lewati ke akhir galeri foto

Lewati ke awal galeri foto

Deskripsi Produk

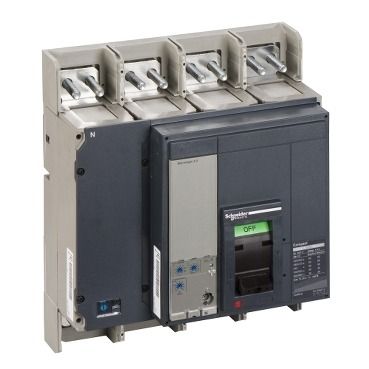

This Compact NS800N is a complete 4 poles fixed circuit breaker designed to optimize space and breaking capacity.

It is an optimal choice for all standard and specific applications.

The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz.

The operational voltage is 690VAC 50/60Hz.

The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons.

This product embeds an electronic Micrologic 2.0 trip unit, with 800A rating.

Micrologic 2.0 trip unit provides adjustable long time and instantaneous protections.

This 4 poles version (327mm x 280mm x 147mm) comes with a variety of optional functions and accessories.

It is compliant with IEC 69947-1 and IEC60947-2 international standards and marine specifications.

Compact NS800N is part of Schneider Electric EcoStruxure Power architecture.

Informasi lebih lanjut

Range

ComPact NS

Product/Component Type

MCCB

Trip Unit Rating

800 A

[Ue] rated operational voltage

690 V AC 50/60 Hz

Trip unit name

MicroLogic 2.0

Device short name

800N

Number of poles
