Schneider

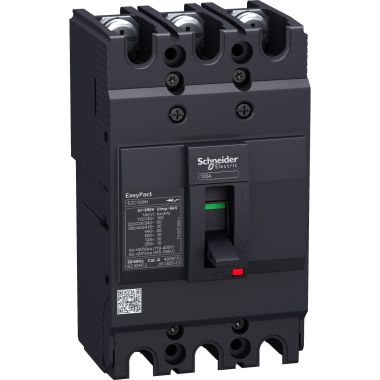

Schneider MCCB Easypact EZC 100B - TMD - 50 A - 3 poles 3d - circuit breaker - EZC100B3050
Ready Stock
EZC100B3050
Harga Spesial Rp519.058 Harga Reguler Rp1.038.116
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
This is a 50A circuit breaker for EasyPact EZC100B.
This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz.
The ultimate breaking capacity(Icu) is shown differently, depended on the condition of network, Ics=25%Icu if need to match.
This version of product is designed 3 poles frame with detection on 3 poles,equiped TMD trip unit for thermal-magnetic protection.
It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva.
This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions.
Device can be mounted vertically or horizontally in a metal enclosure,and against from safety risk by padlocking.
The degree of protection is IP40 for direct rotary handle,and IP54 for extended rotary handle.
This series have slots used for indication or voltage release auxiliaries positioning , depending on where it is inserted in the device behind the front cover of circuit breaker.
The fixed dimension is 75mm(width),130mm(height),60mm(Depth).
Spesifikasi
| Range | Easypact EZC |
|---|---|
| Product/Component Type | MCCB |
| Poles description | 3P |
| [Ue] rated operational voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 50 A at 40 °C |
| Trip unit name | TM-D |
| Device short name | 100B |
Anda mungkin juga menyukai
- Tambahkan ke Daftar Keinginan
Schneider cam changeover switch - 1 pole - 45A° - 12 A - screw mounting - XAC-A - XACA009XACA009Harga Spesial Rp90.549 Harga Reguler Rp164.635Ready Stock - Tambahkan ke Daftar Keinginan
Schneider Acti 9 iID - RCCB - 2P - 40A - 300mA - type AC - A9R74240A9R74240Harga Spesial Rp641.391 Harga Reguler Rp1.282.783Ready Stock - Tambahkan ke Daftar Keinginan Schneider Acti 9 iID - RCCB - 2P - 63A - 300mA - type AC - A9R74263A9R74263Harga Spesial Rp962.087 Harga Reguler Rp1.924.174Ready Stock
- Tambahkan ke Daftar Keinginan Schneider MCB Acti 9 C120N - 1P - 80A - C curve - circuit breaker - A9N18357A9N18357Harga Spesial Rp449.031 Harga Reguler Rp898.062Ready Stock
- Tambahkan ke Daftar Keinginan Schneider mini Pragma - 1 x 18 modules - smoked door - recessed enclosure - MIP22118SMIP22118SHarga Spesial Rp388.150 Harga Reguler Rp776.301Ready Stock
- Tambahkan ke Daftar Keinginan Schneider MCCB EasyPact CVS 100F - TM100D - 100 A - 4 poles 3d - circuit break - LV510347LV510347Harga Spesial Rp1.330.801 Harga Reguler Rp2.661.602Ready Stock
- Tambahkan ke Daftar Keinginan Schneider MCCB Compact NSXm 125A 3P 25kA at 380/415V(IEC) EverLink lug - LV426208LV426208Harga Spesial Rp1.500.375 Harga Reguler Rp3.125.782Ready Stock
- Tambahkan ke Daftar Keinginan Schneider EasyPact EZC alarm switch AL, EasyPact EZC 100, EasyPact CVS 100BS, 1 common point changeover contact - EZAUX01EZAUX01Harga Spesial Rp274.392 Harga Reguler Rp548.784Ready Stock
Produk Terkait
- Tambahkan ke Daftar Keinginan Schneider Kontaktor TeSys D - 3P, 50A, 24V, AC coil, 3NO, AC-3 -<=440V - LC1D50AB7LC1D50AB7Harga Spesial Rp1.496.374 Harga Reguler Rp2.413.506Out Of Stock

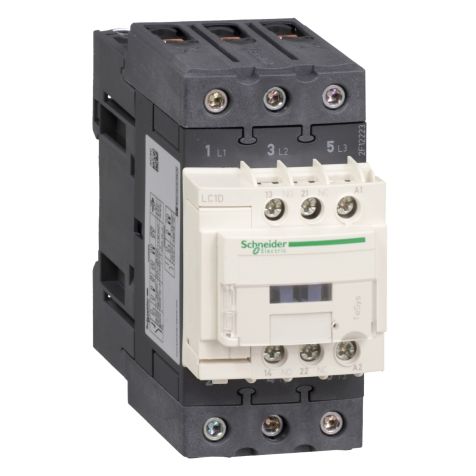

- Tambahkan ke Daftar Keinginan Schneider Kontaktor TeSys D - 3P, 50A, 42V, AC coil, 3NO, AC-3 -<=440V - LC1D50AD7LC1D50AD7Harga Spesial Rp1.510.551 Harga Reguler Rp2.436.372Out Of Stock
