Schneider Acti 9 contactor iCT - 40A - 4NC - 4P - 220...240V 50Hz - A9C20847
Out Of Stock
A9C20847
Notify me when the product is back in stock
Harga Spesial Rp1.087.245 Harga Reguler Rp2.174.490
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
This Acti9 iCT is a modular contactor.
It is a 4P remote control device with 4 normally close contacts.
The rated current is 40A for AC-7a and 15A for AC-7b.
The Ue rated operational voltage is 400VAC.
The Uc control voltage is 220VAC to 240VAC.
This device could be used for control circuits.
This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications.
It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications.
This product is compliant with IEC/EN 61095.
Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute.
The Ui rated insulation voltage is 500VAC.
The Uimp rated impulse withstand voltage is 4kV.
Pollution degree is 2.
It is DIN rail mountable.
Its width is 6 pitches of 9mm.
The product color is white (RAL9003).
The dimensions are (W) 85mm x (H) 54mm x (D) 60mm.
According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
The operating temperature is from -5°C to 60 °C.
The storage temperature is from -40°C to 70°C.
Spesifikasi
| Range | Acti 9 |
|---|---|
| Product/Component Type | Kontaktor |
| Poles | 4P |
| Pole contact composition | 4 NC |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz |
| [Ie] rated operational current | 40 A AC-7A; 15 A AC-7B |
Produk Terkait
- Tambahkan ke Daftar Keinginan
Schneider TeSys Kontaktor Kapasitor, LC1-DF, 12.5 kVAr, coil AC, 220V - LC1DFKM7LC1DFKM7Harga Spesial Rp1.199.533 Harga Reguler Rp1.934.730Indent - Tambahkan ke Daftar Keinginan
Schneider TeSys Kontaktor Kapasitor, LC1-DG, 16.7 kVAr, coil AC, 220V - LC1DGKM7LC1DGKM7Harga Spesial Rp1.341.302 Harga Reguler Rp2.163.390Out Of Stock - Tambahkan ke Daftar Keinginan Schneider TeSys Kontaktor Kapasitor, LC1-DK, 20 kVAR, coil AC, 220V - LC1DLKM7LC1DLKM7Harga Spesial Rp1.732.888 Harga Reguler Rp2.794.980Out Of Stock

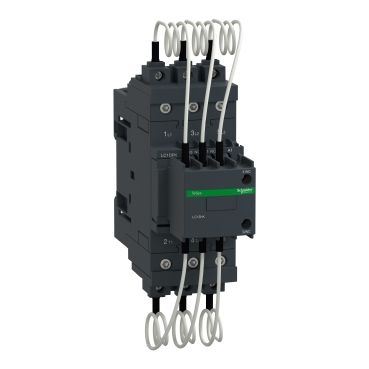

- Tambahkan ke Daftar Keinginan Schneider TeSys Kontaktor Kapasitor, LC1-DK, 33.3 kVAR, coil AC, 220V - LC1DPKM7LC1DPKM7Harga Spesial Rp2.952.378 Harga Reguler Rp4.761.900Indent
