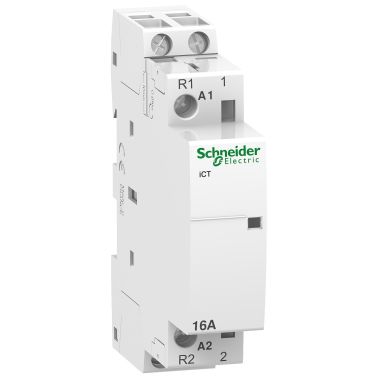

Schneider Acti 9 contactor iCT - 16A 1NO 1NC 230...240V 50Hz - A9C22715
Ready Stock
A9C22715
Harga Spesial Rp247.811 Harga Reguler Rp495.621
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
This Acti9 iCT is a modular contactor.
It is a 2P remote control device with 1 normally open contact and 1 normally close contact.
The In rated current is 16A for AC-7a and 6A for AC-7b.
The Ue rated operational voltage is 250VAC.
The Uc control voltage is 230VAC to 240VAC.
This device could be used for control circuits.
This device could be used for remote switching small motors (fans, mixers) or HVAC system applications.
It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications.
This product is compliant with IEC/EN 61095.
Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute.
The Ui rated insulation voltage is 500VAC.
The Uimp rated impulse withstand voltage is 4kV.
Pollution degree is 2.
It is DIN rail mountable.
Its width is 2 pitches of 9mm.
The product color is white (RAL9003).
The dimensions are (W) 81mm x (H) 18mm x (D) 60mm.
According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
The operating temperature is from -5°C to 60 °C.
The storage temperature is from -40°C to 70°C.
Spesifikasi
| Range | Acti 9 |
|---|---|
| Product/Component Type | Kontaktor |
| Poles | 2P |
| Pole contact composition | 1 NO + 1 NC |
| [Uc] control circuit voltage | 230...240 V AC 50 Hz |
| [Ie] rated operational current | 16 A AC-7A; 6 A AC-7B |
