Schneider
Schneider Domae RCBO, 1P + N, 10 A, C Curve, 30 mA, type AC, 6000 A - DOMD01610
Out Of Stock
DOMD01610
Notify me when the product is back in stock
Harga Spesial Rp396.642 Harga Reguler Rp543.345
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
This Domae product is a residual current breaker with overcurrent protection (RCBO).
It is a 1P+N residual current device, 10A rated current and C tripping curve.
The earth leakage protection class is AC type with a sensitivity of 30mA.
The earth-leakage protection time delay is instantaneous.
The Icn rated short circuit breaking capacity is up to 6000A.
This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.
This product is compliant with EN 61009-1 standard.
It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
The Ue operational voltage is 230VAC.
The Ui rated insulation voltage is 400VAC.
The frequency is 50Hz.
It is DIN rail mountable.
The width in 9mm pitches is 2.
The product color is white (RAL9003).
The dimensions are (W) 18mm x (H) 93mm x (D) 70mm.
The weight is 136g.
It has an IP20 degree of protection.
It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard.
The operating temperature is from -25°C to 55°C.
The storage temperature is from -30°C to 70°C.
Spesifikasi
| Range | RCBO Slim |
|---|---|
| Product/Component Type | Miniature Circuit Breaker |
| Breaking Capacity | 6000 A |
| Poles description | 1P + N |
| Earth-leakage Sensitivity | 30 mA |
| [In] rated current | 10 A |
Anda mungkin juga menyukai
- Tambahkan ke Daftar Keinginan
Schneider Acti 9 iID - RCCB - 2P - 40A - 300mA - type AC - A9R74240A9R74240Harga Spesial Rp641.391 Harga Reguler Rp1.282.783Ready Stock - Tambahkan ke Daftar Keinginan Schneider Acti 9 iID - RCCB - 2P - 63A - 300mA - type AC - A9R74263A9R74263Harga Spesial Rp962.087 Harga Reguler Rp1.924.174Ready Stock
- Tambahkan ke Daftar Keinginan Schneider MCB Acti 9 C120N - 1P - 80A - C curve - circuit breaker - A9N18357A9N18357Harga Spesial Rp449.031 Harga Reguler Rp898.062Ready Stock
- Tambahkan ke Daftar Keinginan Schneider mini Pragma - 1 x 18 modules - smoked door - recessed enclosure - MIP22118SMIP22118SHarga Spesial Rp388.150 Harga Reguler Rp776.301Ready Stock
- Tambahkan ke Daftar Keinginan Schneider MCCB EasyPact CVS 100F - TM100D - 100 A - 4 poles 3d - circuit break - LV510347LV510347Harga Spesial Rp1.330.801 Harga Reguler Rp2.661.602Ready Stock
- Tambahkan ke Daftar Keinginan Schneider MCCB Compact NSXm 125A 3P 25kA at 380/415V(IEC) EverLink lug - LV426208LV426208Harga Spesial Rp1.500.375 Harga Reguler Rp3.125.782Ready Stock
- Tambahkan ke Daftar Keinginan Schneider EasyPact EZC alarm switch AL, EasyPact EZC 100, EasyPact CVS 100BS, 1 common point changeover contact - EZAUX01EZAUX01Harga Spesial Rp274.392 Harga Reguler Rp548.784Ready Stock
- Tambahkan ke Daftar Keinginan Schneider cam changeover switch - 1 pole - 45A° - 12 A - screw mounting - XAC-A - XACA009XACA009Harga Spesial Rp90.549 Harga Reguler Rp164.635Ready Stock
Produk Terkait
- Tambahkan ke Daftar Keinginan Schneider Kontaktor TeSys D - 4P, 20A, 220V, AC coil, 2NO+2NC, AC-3 -<=440V - LC1D098M7LC1D098M7Harga Spesial Rp482.015 Harga Reguler Rp777.444Out Of Stock

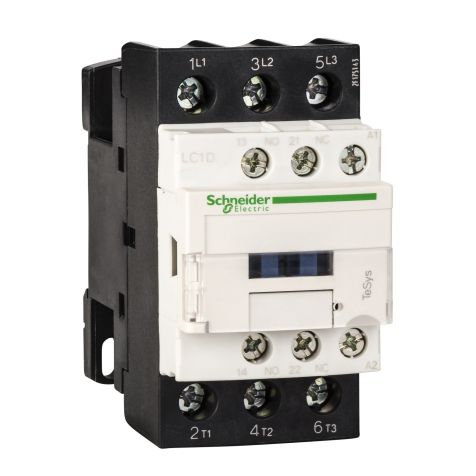

- Tambahkan ke Daftar Keinginan Schneider Kontaktor TeSys D - 3P, 25A, 48V, AC coil, 3NO, AC-3 -<=440V - LC1D25E7LC1D25E7Harga Spesial Rp547.229 Harga Reguler Rp882.628Out Of Stock
