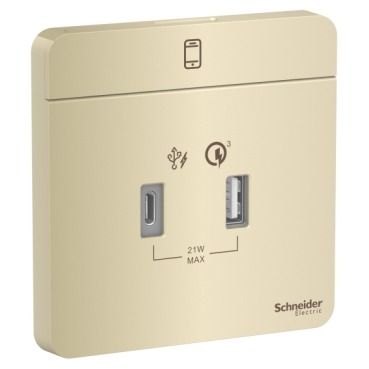

Schneider Electric AvatarOn USB charger E8332ACQUSB_WG in color wine gold is a 1-module mechanism with one Type A and one Type C port.
This USB 3.0 charger is compatible with major smart phones and tablets, like Apple, HTC, HuaWei, Samsung, XiaoMi, etc.
This device is 86 mm in width, 86 mm in height and 40.1 mm in depth.
It embedding depth is 30.4 mm.
The rated operation voltage of this device is 100/240V, output current 2.1A and power consumption 21w.
Flush mounting is available so that it can be recessed into the surface.
The connection terminal of this USB charger mechanism is screw terminal.
It features painted surface finish, with which it becomes more wear and corrosion resistant, and the polish treatment creates a smooth and shiny surface too.
It is made of PC (polycarbonate), without turning into yellow over time, featuring high-end manufacturing.
Standards of IEC 60950-1, IEC 61558-2-16, IEC 62368-1, MS IEC 60950-1 are well met.
Standards of IEC 60950-1, IEC 61558-2-16, IEC 62368-1, MS IEC 60950-1 are well met.
Range | AvatarOn |
---|---|
Product/Component Type | Saklar, Stop Kontak & Aksesoris |
[Ue] rated operational voltage | 100/240 V 50/60 Hz |
Device Application | Charger |
Colour tint | Wine Gold |
Integrated Connection Type | USB type A 5 V, maximum load current: 2.1 A USB type C 5 V, maximum load current: 2.1 A |
Material | PC _polycarbonate) |
Device Mounting | Flush |
