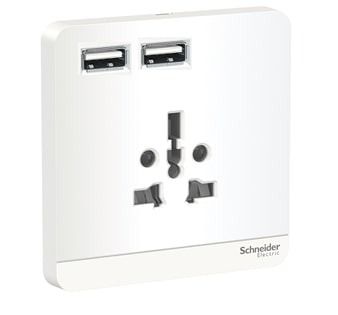

Schneider Electric AvatarOn USB charger + socket-outlet E8342616USB_WE is a complete product in color white with earthing contact.
Its connector is USB type A, socket-outlet.
And this device is China standard.
The configuration of this socket outlet is 2P.
Its connection terminals are screw terminal.
Its matching mounting box can be recessed into the surface of the wall with flush type.
The fixing mode of this device is by screws.
With current protection protection type, this USB charger + socket-outlet concerns your safety.
Being made of PC (polycarbonate) material, this USB charger + socket-outlet is quite reliable and resistant.
The dielectric strength, a measure of the electrical strength of a material as an insulator, is 2000 V.
It is 86 mm in width, 86 mm in height, 38.2 mm in depth.
And it features protective untreated surface treatment.
Besides, the IP rating of this device is IP20.
The surface finish is glossy, delivering an elegant and high-end feeling to a room.
What's more, it well satisfied the standard of UL 1310, UL 498, UL 94.
This USB charger + socket-outlet is SVHC (substances of very high concern) free too.
What's more, this device is qualified as a green premium product, with minimal use of hazardous substances.
Range | AvatarOn |
---|---|
Product/Component Type | Saklar, Stop Kontak & Aksesoris |
Outlet Poles Configuration | 2P with shutter |
Colour tint | White |
Integrated Connection Type | 2 socket-outlet 250 V AC 16 A 50/60 Hz 1 USB type A 5 V DC 2.1 A |
Material | PC _polycarbonate): grid plate PC _polycarbonate): surround |
Device Mounting | FlushSurface |
Fixing Mode | By screws |
