Schneider Acti9 iIL single indicator light - Green - 110-230 Vac - A9E18321
Ready Stock
A9E18321
Harga Spesial Rp131.765 Harga Reguler Rp263.531
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk

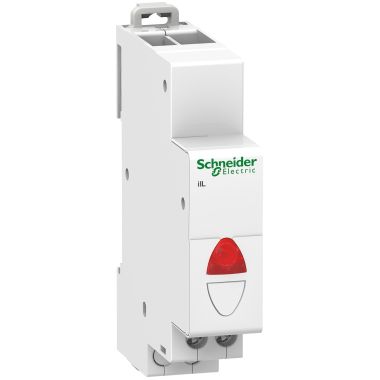

This Acti 9 iIL is a single-phase voltage presence indicator light.
The voltage is 110VAC to 230VAC or 110VDC to 130VDC.
The red light on the front face lights up to indicate that a voltage is present.
The connection could be done with flexible copper cables or with ferrule cables from 0.5mm² up to 2 x 2.5mm².
The tightening torque for the PZ1 screwdriver to connect screw connections is 1N.m.
The connection could be done with rigid copper cables from 0.5mm² minimum up to 2 x 2.5mm2 maximum.
It comes with staggered terminals to simplify the connection.
The LED indication light maximum consumption per indicator light is 0.3W.
The Operating frequency is 50Hz or 60Hz.
The service life of the LED indicator light is 100000h of constant lightning efficiency.
Because of the non-interchangeability of LEDs it is a maintenance-free device.
The tropicalization is Treatment 2 (relative humidity 95% at 55°C).
The degree of protection is IP20.
The pollution degree is 3.
The width in 9mm pitches is 2.
The dimensions are (W) 18mm x (H) 82mm x (D) 68mm.
The weight is 65g.
The operating temperature is -35°C to 70°C.
The storage temperature is -40°C to 80°C.
This product complies with IEC/EN 60947-5-1 standard.
Spesifikasi
| Range | Command Control |
|---|---|
| Product/Component Type | Miniature Circuit Breaker |
