Schneider Acti 9 iPF K 65 - 3P + N - 340V - modular surge arrester - A9L15586

Name: Schneider Acti 9 iPF K 65 - 3P + N - 340V - modular surge arrester - A9L15586
Brand: Schneider
Price: 4135316 IDR
Availability: InStock

Ready Stock

A9L15586

Harga Spesial Rp2.067.658 Harga Reguler Rp4.135.316

Lewati ke akhir galeri foto

Lewati ke awal galeri foto

Deskripsi Produk

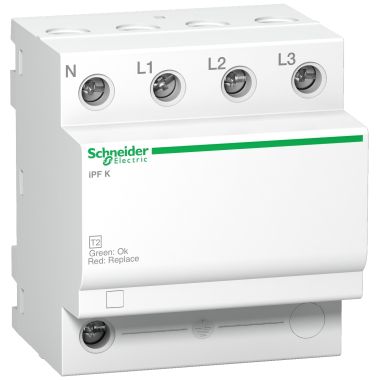

This Acti9 iPF K 65 product is a modular surge arrester.

It protects 3P installations.

The Imax maximum discharge current is 65kA .The In nominal discharge current is 20kA.

The multi-pole single-piece surge arrester range is adapted for TT, TN-S, TN-C earthing systems.

This type 2 incoming protection surge arrester is recommended for a very high risk level.

The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 260VAC.

The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 340VAC.

The Up Voltage protection level is 1.5kV in common mode (between neutral and earth) and in differential mode (between phase and neutral).

The Ue rated operational voltage is 230VAC or 400VAC +/- 10%.

The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 81mm x (D) 69mm.

The weight is 335g.

The degree of protection is IP20 and IP40 in modular enclosure.

The operating temperature is -25Â°C to 60Â°C.

The storage temperature is -40Â°C to 85Â°C.

This product is compliant with IEC 61643-11 and EN 61643-11 standards.

Informasi lebih lanjut

Range

Acti 9

Product/Component Type

Surge Arrester

Poles description

3P + N

[Uc] maximum continuous operating voltage

Common mode: 260 V N/PE Differential mode: 340 V L/N
