Schneider Acti 9 iPF K 20 - 1P + N - 340V - modular surge arrester - A9L15692
Ready Stock
A9L15692
Harga Spesial Rp683.979 Harga Reguler Rp1.367.958
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk

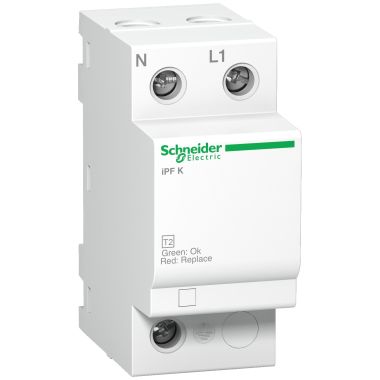

This Acti9 iPF K 20 product is a modular surge arrester.
It protects 1P+N installations.
The Imax maximum discharge current is 20kA .The In nominal discharge current is 5kA.
The multi-pole single-piece surge arrester range is adapted for TT, TN-S, TN-C earthing systems.
This type 2 incoming protection surge arrester is recommended for a medium risk level.
The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and is 340VAC between phase and earth.
The Up Voltage protection level is 1.5kV in common mode (between neutral and earth) and is 1.1kV in differential mode (between phase and neutral).
The Ue rated operational voltage is 230VAC +/- 10%.
The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 81mm x (D) 69mm.
The weight is 210g.
The degree of protection is IP20 and IP40 in modular enclosure.
The operating temperature is -25°C to 60°C.
The storage temperature is -40°C to 85°C.
This product is compliant with IEC 61643-11 and EN 61643-11 standards.
Spesifikasi
| Range | Acti 9 |
|---|---|
| Product/Component Type | Surge Arrester |
| Poles description | 1P + N |
| [Uc] maximum continuous operating voltage | Common mode: 340 V L/PE Common mode: 260 V N/PE Differential mode: 340 V L/N |
