Schneider Acti 9 iDPN N Vigi - RCBO - 1P+N - 20A - C Curve - 6000A - 300mA - type AC - A9D41620
Out Of Stock
A9D41620
Notify me when the product is back in stock
Harga Spesial Rp1.019.538 Harga Reguler Rp2.039.076
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO).
It is a 1P+N circuit breaker with 1 protected pole, 20A In rated current and C tripping curve.
The earth leakage protection class is AC type with a sensitivity of 300mA.
The earth-leakage protection time delay is instantaneous.
The Icn rated short circuit breaking capacity is up to 6000A according EN/IEC 61009-2-1 standard.
This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.
Its earth fault indicator on front face allows quick identification of the type of default.
A push-test button T is positioned on the front of the device for testing that product is operational.
This product is compliant with EN/IEC 61009-2-1 standard.
It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles.
The Ue operational voltage is 220VAC to 240VAC.
The Ui rated insulation voltage is 400VAC.
The Uimp rated impulse withstand voltage is 4kV.
The frequency is 50Hz.
It is DIN rail mountable.
The width in 9mm pitches is 4.
The product color is white (RAL9003).
The dimensions are (W) 36mm x (H) 85mm x (D) 73mm.
The weight is 125g.
It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure.
The operating temperature is from -5°C to 60°C.
The storage temperature is from -40°C to 85°C.
Spesifikasi
| Range | RCBO |
|---|---|
| Product/Component Type | Pengaman Arus Bocor |
| Breaking Capacity | 6000 A |
| Poles description | 1P + N |
| Earth-leakage Sensitivity | 300 mA |
| [In] rated current | 20 A |
| Curve code | C |
Produk Terkait
- Tambahkan ke Daftar Keinginan

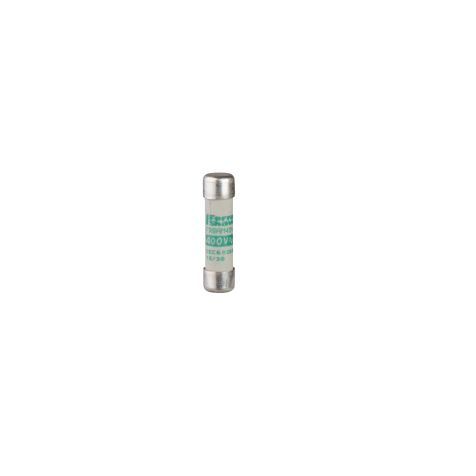

Schneider TeSys fuse-disconnector - 8.5 x 31.5 mm - aM 6A - w/o indication - DF2BA0600DF2BA0600Harga Spesial Rp233.919 Harga Reguler Rp377.289Out Of Stock - Tambahkan ke Daftar Keinginan Schneider TeSys fuse-disconnector - fuse cartridge 10 x 38 mm - aM 25A - w/o indication - DF2CA25DF2CA25Harga Spesial Rp184.300 Harga Reguler Rp297.258Out Of Stock
