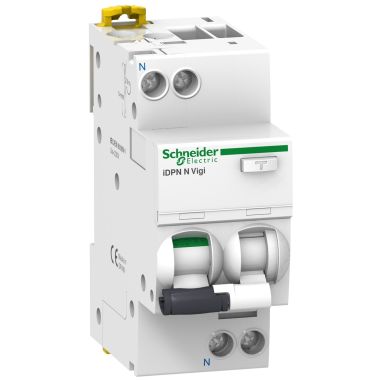

Schneider Acti 9 iDPN N Vigi - RCBO - 1P+N - 16A - C Curve - 6000A - 30mA - type AC - A9D31616
Out Of Stock
A9D31616
Notify me when the product is back in stock
Harga Spesial Rp982.381 Harga Reguler Rp1.964.761
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO).
It is a 1P+N circuit breaker with 1 protected pole, 16A In rated current and C tripping curve.
The earth leakage protection class is AC type with a sensitivity of 30mA.
The earth-leakage protection time delay is instantaneous.
The Icn rated short circuit breaking capacity is up to 6000A according EN/IEC 61009-2-1 standard.
This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.
Its earth fault indicator on front face allows quick identification of the type of default.
It has a longer service life thanks to its high limitation and fast closing.
It has a test button.
This product is compliant with EN/IEC 61009-2-1 standard.
It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles.
The Ue operational voltage is 220VAC to 240VAC.
The Ui rated insulation voltage is 400VAC.
The Uimp rated impulse withstand voltage is 4kV.
The frequency is 50Hz.
It is DIN rail mountable.
The width in 9mm pitches is 4.
The product color is white (RAL9003).
The dimensions are (W) 36mm x (H) 85mm x (D) 73mm.
The weight is 125g.
According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
The operating temperature is from -5°C to 60°C.
The storage temperature is from -40°C to 85°C.
Spesifikasi
| Range | RCBO |
|---|---|
| Product/Component Type | Pengaman Arus Bocor |
| Breaking Capacity | 6000 A |
| Poles description | 1P + N |
| Earth-leakage Sensitivity | 30 mA |
| [In] rated current | 16 A |
| Curve code | C |
