Schneider ACB MVS, 1600A, N, 4P, 50kA, Fixed, Air Circuit Breaker - MVS16N4MF2A
Out Of Stock
MVS16N4MF2A
Notify me when the product is back in stock
Harga Spesial Rp31.820.806 Harga Reguler Rp60.039.256
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk

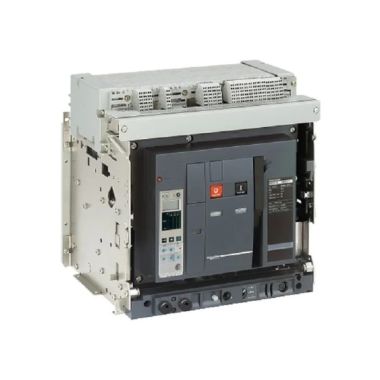

The EasyPact MVS16N circuit breaker is a reliable 1600A device with a breaking capacity (Icu) of 50kA rms at 440VAC 50/60Hz and an operational voltage of 690VAC. This 4-pole fixed version features an electronic trip unit that provides LI protection, including overload and instantaneous protection. A digital LCD screen continuously displays I1, I2, I3, IN, and maximeter(Imax), while fault indication LEDs signal 3 types of fault: Ir (Overload), Ii (Instantaneous), and Ap (Internal fault). This circuit breaker can be manually operated without a gear motor, closing release, or opening release. The EasyPact MVS16N fully complies with international standards, including IEC 60947, CE, EAC, and RoHS.
Spesifikasi
| Range | EasyPact MVS |
|---|---|
| Product/Component Type | Air Circuit Breaker |
| Trip Unit Rating | 1600 A |
| Breaking Capacity | 50 kA |
| Breaking capacity code | N |
| Mounting Mode | Fixed |
| Poles description | 4P |
