Schneider

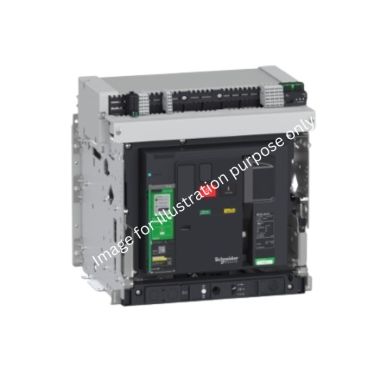

Schneider ACB MTZ 3P 66 kA 3200A, Drawout - MTZ232H12.0X3PED
Out Of Stock
MTZ232H12.0X3PED
Notify me when the product is back in stock
Harga Spesial Rp93.790.604 Harga Reguler Rp176.963.404
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk
ACB MTZ32H1 Electrically Operated (Motorized) + Micro 2.0X 66kA 3P 3200A Drawout Type MTZ232H12.0X3PED Schneider- Arus nominal : 3200A.
- Kapasitas Pemutusan : 66kA pada 380/440V.
- lcu = Ics = Icw (1sec) = 66kA
- Full Discriminated sampai downstream breaker Kapasitas Pemutusan
- Upgrade Anytime, Anywhere dengan MTZ Digital Modules
- Zone selective interlocking (ZSI) dengan 2.0X
- Trip unit Micrologic 2.0X, memiliki 3 setelan :
- (1). long time protection (proteksi beban lebih) : lr = 0.4 ln s/d In dengan 9 setelan.
- (2). time delay untuk long time protection (tr).
- (3). instantaneous protection (proteksi hubung singkat) : lsd = 1.5 Ir s/d 10 lr dengan 9 setelan.
- Dual settings functions Class 1 embedded Metering: current, voltage, active/reactive/apparent Power & Energy, power Factor, Frequency, Unbalance dan THD voltage & current3 pole, drawout typeMemenuhi standar IEC 60947-2.Rating netral penuh dengan perlindungan built in
Spesifikasi
| Range | MasterPact MTZ |
|---|---|
| Product/Component Type | Air Circuit Breaker |
| Trip Unit Rating | 3200 A |
| Breaking Capacity | 66 kA |
| Poles description | 3P |
