Hensel Circuit Breaker Box 202X238X111 with terminal 1 Baris 9 Modul IP65 - KV 7109
Indent
KV 7109
Harga Spesial Rp1.171.119 Harga Reguler Rp1.377.788
IDR, Ind
Hoki Care
(021) 6121212
Live Chat
Operational Hours Senin - Jumat 08.30 - 17.00 & Sabtu 08.30 - 14.00
Deskripsi Produk
Deskripsi Produk

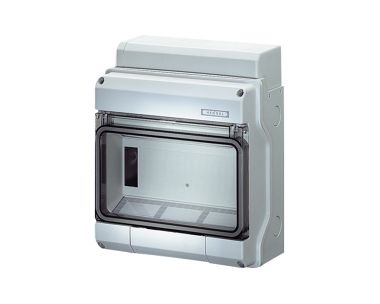

Hensel Circuit Breaker Box 202X238X111 with terminal 1 Baris 9 Modul IP65 - KV 7109
- 9 modules: 1 x 9 x 18 mm
- 1-row
- knockouts: top and bottom walls 4x M20/25 and 1x M25/32 each
- per PE/N number x cross section 2 x 25 mm², 8 x 4 mm² Cu, FIXCONNECT® terminal technology, for terminal technology refer to technical data
- for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
- with transparent lid, sealable
- locking device for hinged lid and sealing facility see accessories
- with cable entry cover
- protective cover can be cut out
- degree of protection: IP 65
- colour: grey, RAL 7035
Spesifikasi
| Range | Enyboard Series |
|---|---|
| Product/Component Type | Junction Box |
| IP degree of protection | IP65 |
| Rated Voltage | 400 V |
| Colour | Polystyrene |
